Blueprint T

For the highly skilled golfer who relies on workability and prefers the size and look of a muscle back, the Blueprint T is engineered as a single-piece, 8620 carbon steel forging that puts a premium on trajectory control and superb feel. Its muscle-back design concentrates mass through the impact zone to ensure a pleasing sound and feel with the workability to take on any shot.


You May Also Like

PING Blueprint T Technology

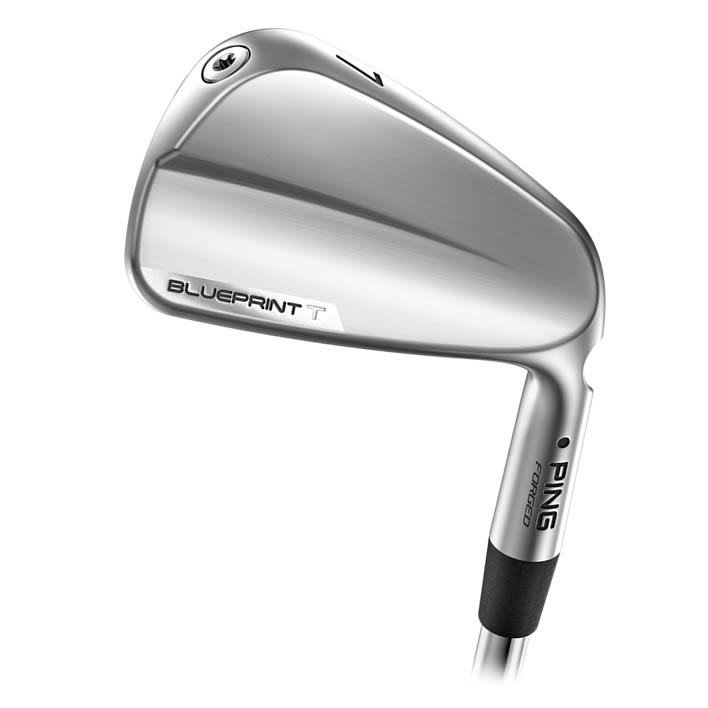

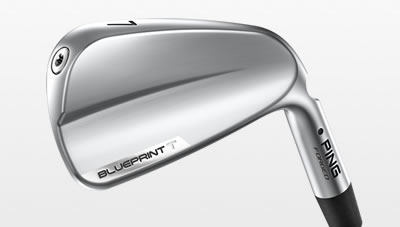

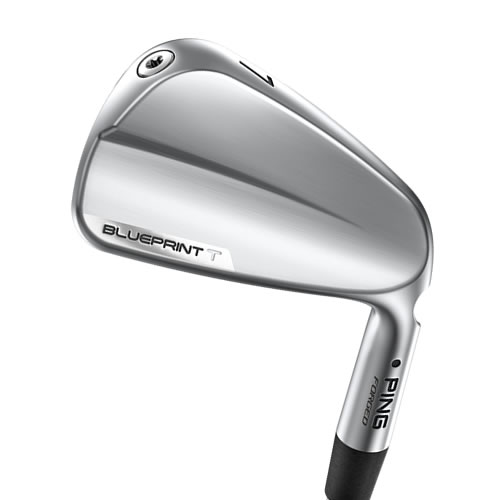

  • Cavity view of Blueprint T iron

    Tour Collaboration

    Developed following extensive testing with our top tour pros on how to improve PING’s forged irons, Blueprint T is a refinement of the original Blueprint currently found in the bags of many of our top tour staffers who prefer the look and feel of a compact, muscle-back style iron.

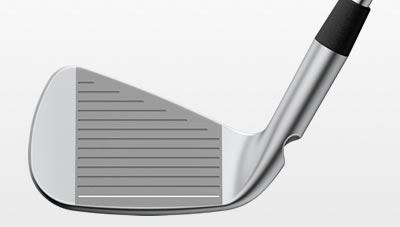

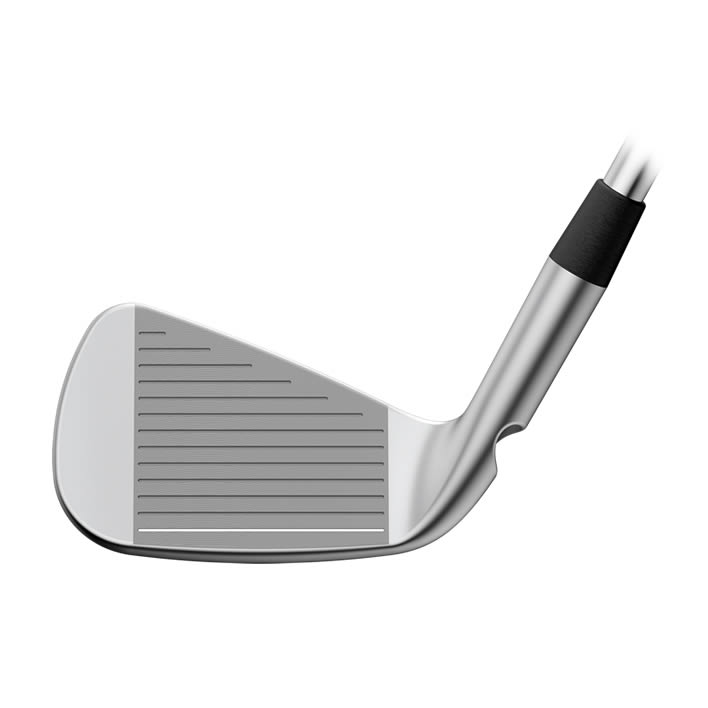

  • Face view of Blueprint T iron

    Machined Face & Grooves

    Precision-milling the face and grooves ensures the preferred launch and spin for players who rely on pinpoint control, assisted by the hydropearl 2.0 chrome finish. In tour-player testing, Blueprint T produced more ball speed than previous generations while increasing max height for green-holding performance.

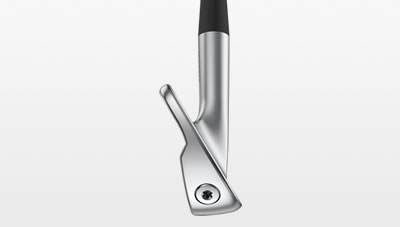

  • Toe view of Blueprint T iron

    Narrower Sole

    It’s a purely forged iron except for a high-density toe screw and shaft tip weight that provide precise swingweight control and a slight boost in MOI. Mass is concentrated through the impact zone to ensure a pleasing sound and feel with workability. Narrow soles enable consistent turf interaction and performance from all conditions.

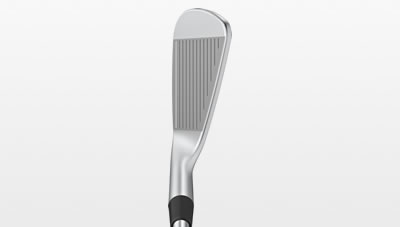

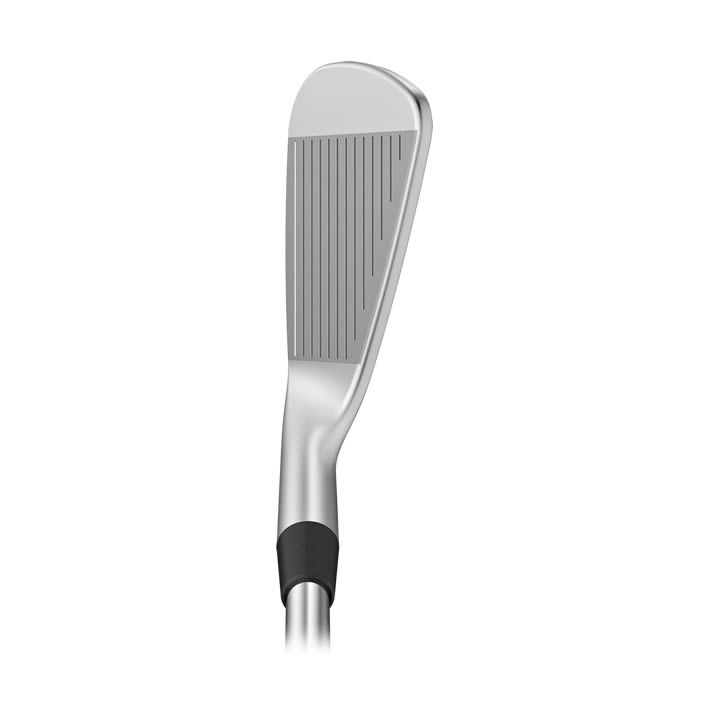

  • Address view of Blueprint T iron

    Clean, Compact

    Among the refinements to the overall shaping is a shorter heel-face height, allowing the hosel transition to blend smoothly into the top rail, creating a clean, distraction-free appearance with less offset, a shorter blade length and a thin topline.

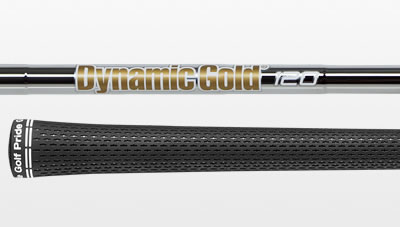

  • Dynamic Gold 120 shaft and Tour Velvet grip

    Shaft, Grip

    True Temper Dynamic Gold 120 is stock, offering low trajectory, low spin, and tour-caliber accuracy in a lighter-weight steel. The Golf Pride Tour Velvet grip is stock, offering a patented non-slip surface that delivers outstanding responsiveness while still providing comfort.

Blueprint T Reviews

Blueprint T cavity
Blueprint T
Reviews

Blueprint T


Blueprint T cavity
Blueprint T
Specifications

Club Length Loft Power Spec Loft Retro Spec Loft Lie Angle Offset Bounce Swing­weight
3-iron 38 3/4" 3/4 19.0°degrees 19.0°degrees 21.0°degrees 59.0°degrees 0.14"Ping.Clubs.Specs.Offset.Units 5.0°degrees D2
4-iron 38 1/4" 1/4 22.5°degrees 22.0°degrees 24.5°degrees 59.8°degrees 0.12"Ping.Clubs.Specs.Offset.Units 6.0°degrees D2
5-iron 37 3/4" 3/4 26.0°degrees 25.0°degrees 28.0°degrees 60.5°degrees 0.10"Ping.Clubs.Specs.Offset.Units 7.0°degrees D2
6-iron 37 1/4" 1/4 29.5°degrees 28.0°degrees 31.5°degrees 61.3°degrees 0.07"Ping.Clubs.Specs.Offset.Units 8.0°degrees D2
7-iron 36 3/4" 3/4 33.0°degrees 31.5°degrees 35.0°degrees 62.0°degrees 0.06"Ping.Clubs.Specs.Offset.Units 9.0°degrees D2
8-iron 36 1/4" 1/4 37.0°degrees 35.5°degrees 39.0°degrees 62.8°degrees 0.05"Ping.Clubs.Specs.Offset.Units 10.0°degrees D2
9-iron 35 3/4" 3/4 41.0°degrees 40.0°degrees 43.0°degrees 63.5°degrees 0.04"Ping.Clubs.Specs.Offset.Units 11.5°degrees D2
PW 35 1/2" 1/2 45.0°degrees 44.5°degrees 47.0°degrees 64.1°degrees 0.03"Ping.Clubs.Specs.Offset.Units 13.0°degrees D3

Notes

  • These are design specifications that may vary due to manufacturing tolerances.
  • Lie angle is based on Black Color Code at standard length.
  • Power Spec Loft is a fitting option for players looking to boost their iron distance or decrease spin to hit a desired trajectory window. This custom-designed loft configuration delivers a calculated power boost without sacrificing the integrity of the club’s design.
  • Retro Spec Loft is a fitting option if you’re less concerned with overall distance and more with precision and a higher trajectory for more stopping power. This loft configuration yields functional distance gaps for utilizing a 3-wedge setup or a more classic loft spec.
  • Club bounce angles will vary slightly if ordered with non-standard loft specs.
  • Achievable swingweights depend on shaft, length and grip combinations.
  • Available in left- and right-handed models.

Blueprint T cavity
Blueprint T
Shafts

PING offers a variety of shaft flexes in steel and graphite to meet your needs and preferences. Selecting the proper shaft flex for your swing will help you get the most distance and accuracy from every shot. Generally, players with faster swing speeds require stiffer shafts to keep the ball trajectory lower, while players with slower swing speeds will require more-flexible shafts to produce a higher ball trajectory.


The choice of steel or graphite shafts is usually based on preferences for weight and/or feel. Players seeking a lighter overall weight and/or a softer feel in their irons may prefer graphite shafts, while players who prefer a standard-weight club with a firmer feel may prefer steel shafts.


We recommend that you get fit for the shaft that allows you to play your best golf. Whether that’s a softer, lighter shaft with a higher launch or a heavier, stiffer shaft with a lower trajectory, a PING Certified Club Fitter can help you find the shaft that brings consistency to your game.

Shaft Flex Weight Launch Angle

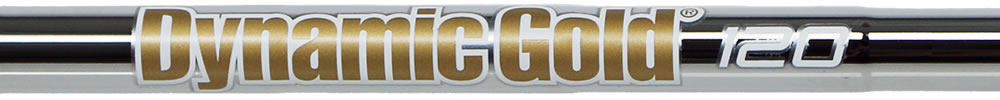

True Temper Dynamic Gold 120
True Temper DG 120 shaft		 S300 112.0gPing.Clubs.Specs.Weight.Units Low
X100 114.0gPing.Clubs.Specs.Weight.Units Low

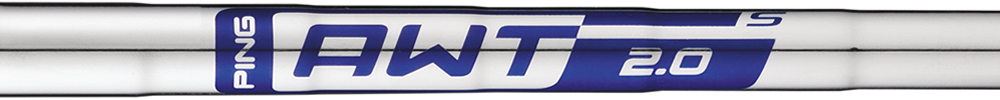

PING AWT 2.0
PING AWT 2.0 Shaft		 Regular 98.0gPing.Clubs.Specs.Weight.Units Mid High
Stiff 104.0gPing.Clubs.Specs.Weight.Units Mid
X-Stiff 119.0gPing.Clubs.Specs.Weight.Units Low Mid

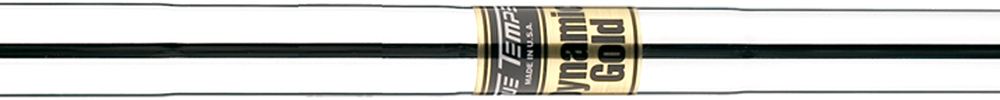

True Temper Dynamic Gold
True Temper Dynamic Gold Shaft		 R300 121.0gPing.Clubs.Specs.Weight.Units Low Mid
S300 124.0gPing.Clubs.Specs.Weight.Units Low Mid
X100 124.0gPing.Clubs.Specs.Weight.Units Low

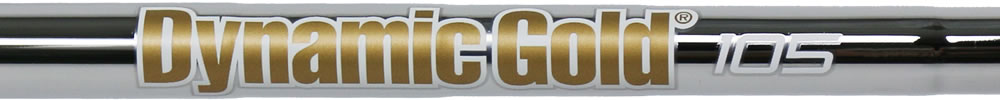

True Temper Dynamic Gold 105
True Temper DG 105 shaft		 R300 94.0gPing.Clubs.Specs.Weight.Units Mid
S300 96.0gPing.Clubs.Specs.Weight.Units Mid

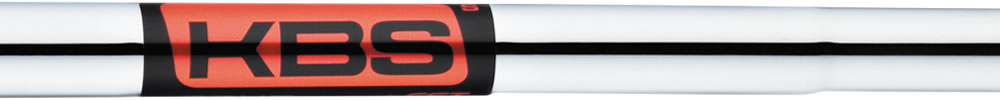

KBS Tour
KBS Tour Shaft		 Regular 104.0gPing.Clubs.Specs.Weight.Units Mid
Stiff 114.0gPing.Clubs.Specs.Weight.Units Mid
X-Stiff 124.0gPing.Clubs.Specs.Weight.Units Low Mid

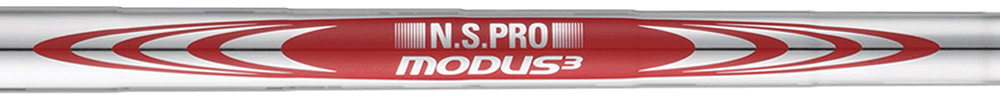

Nippon N.S. Pro Modus 3 Tour 105
Nippon NS Pro Modus3 Tour 105		 Regular 103.0gPing.Clubs.Specs.Weight.Units Mid High
Stiff 106.0gPing.Clubs.Specs.Weight.Units Mid High
X-Stiff 112.0gPing.Clubs.Specs.Weight.Units Mid High

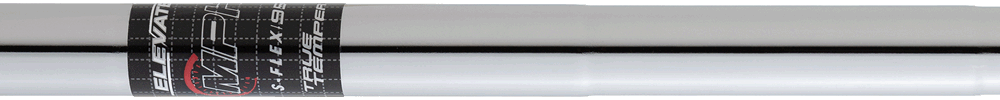

True Temper Elevate MPH 95
True Temper Elevate MPH 95 shaft		 Regular 93.0gPing.Clubs.Specs.Weight.Units High
Stiff 94.0gPing.Clubs.Specs.Weight.Units High

Notes

  • Shaft weights listed are based on the trimmed length of a 7-iron and may not match the specs on the shaft manufacturer’s websites.
  • Graphite shafts are not available for the Blueprint T.

Blueprint T cavity
Blueprint T
Grips

PING offers a variety of grip sizes and styles to fit different hand sizes and texture preferences. Since grip size influences your wrist action, and therefore the direction of your shots, it is commonly used by fitters to affect ball flight.


PING color-coded grips are available in six different diameters, and can be further customized with grip tape according to your needs. Once the neutral grip color code has been determined based on hand measurements, golfers may consider smaller diameter grips to help control fades and slices, or larger diameter grips to help control draws and hooks.

Grip Grip Size Description

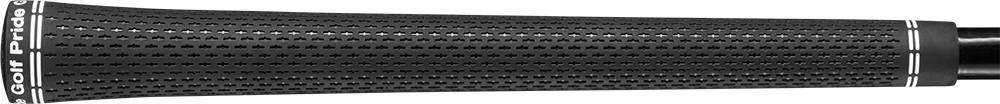

Golf Pride 360 Tour Velvet
Golf Pride 360 Tour Velvet grip
  • plus+1/16"Ping.Clubs.Grips.ColorCode.Size.Units
  • plus+1/32"Ping.Clubs.Grips.ColorCode.Size.Units
  • StdPing.Clubs.Grips.ColorCode.Size.Units
  • minus-1/64"Ping.Clubs.Grips.ColorCode.Size.Units
  • minus-1/32"Ping.Clubs.Grips.ColorCode.Size.Units
  • minus-1/16"Ping.Clubs.Grips.ColorCode.Size.Units

The Golf Pride Tour Velvet features a state-of-the-art rubber-blend compound with a non-slip surface pattern for maximum playability and confidence. The scientifically designed plus-sign texture pulls moisture away from surface to allow for consistent traction.

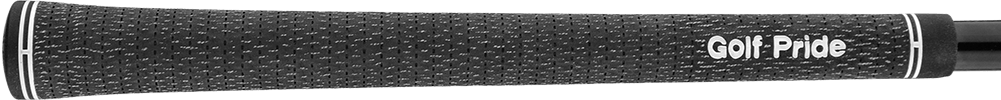

Golf Pride 360 Tour Velvet Cord
Golf Pride 360 Tour Velvet Cord grip
  • plus+1/32"Ping.Clubs.Grips.ColorCode.Size.Units
  • StdPing.Clubs.Grips.ColorCode.Size.Units

The Golf Pride Tour Velvet Cord features a state-of-the-art rubber-blend compound with a non-slip surface pattern and embedded cotton twill fibers for maximum playability and confidence in all weather conditions. The scientifically designed plus-sign texture pulls moisture away from surface to allow for consistent traction.
