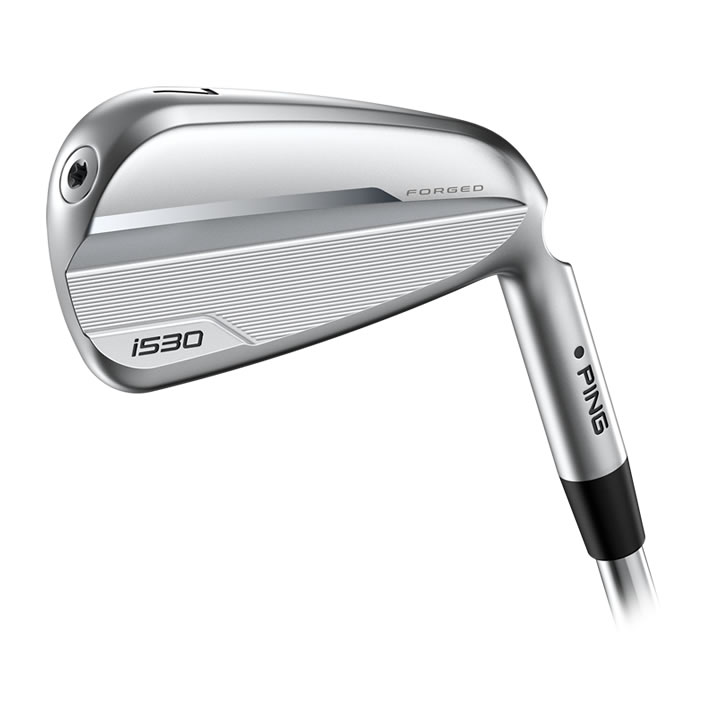

If you desire a compact, blade-style head and your primary goal is more distance, the new i530 is engineered to launch the ball higher and farther with the consistency and predictability to hit shots closer to the hole. Distance gains come from multiple sources including a highly flexible forged face in a hollow-body design that will add yards with tighter dispersion.

You May Also Like

PING i530 Technology

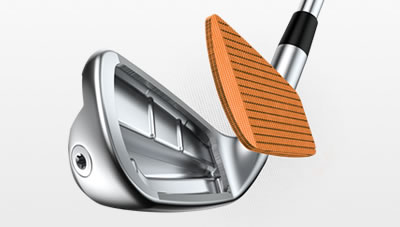

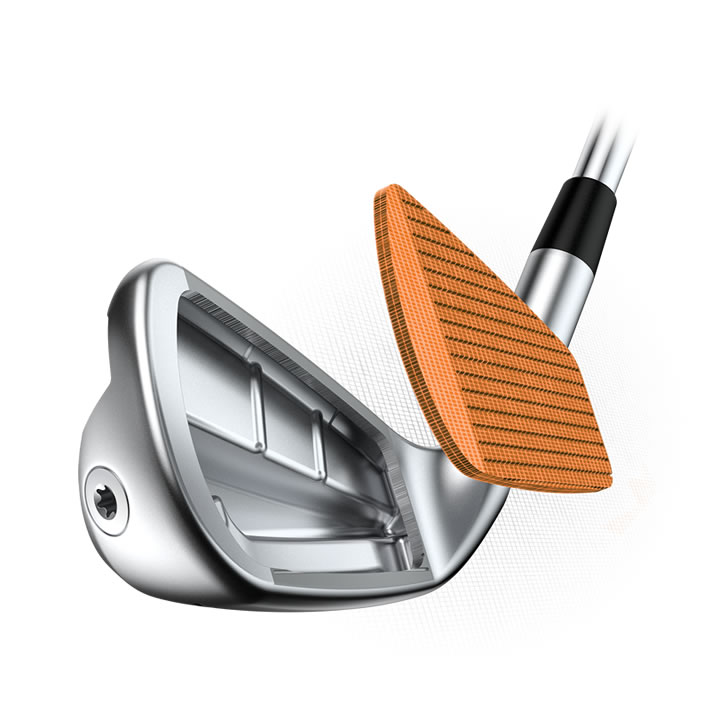

  • Exploded face view of i530 iron

    Forged Face

    Like our previous player’s distance designs, a forged, highly flexible maraging steel C300 face is precisely welded to the 17-4 stainless steel hollow body, creating bending that produces big distance gains.

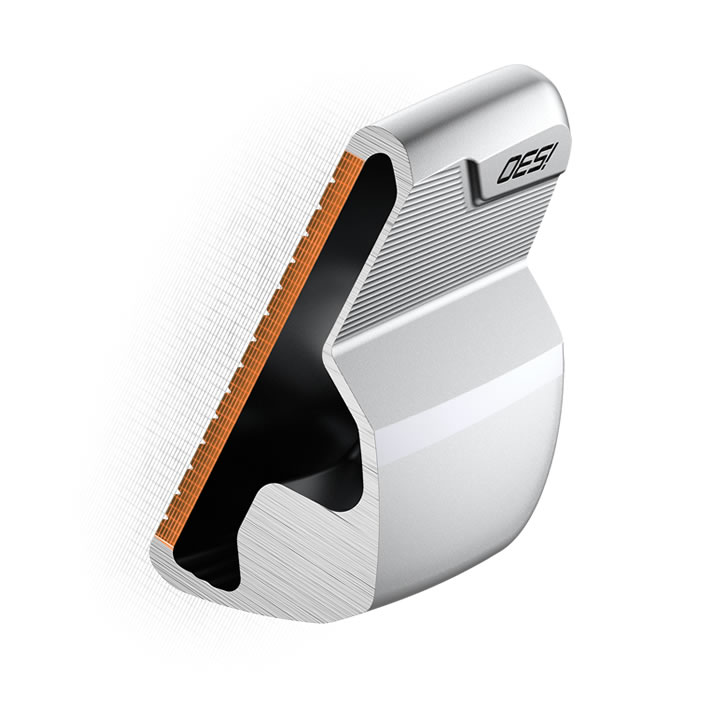

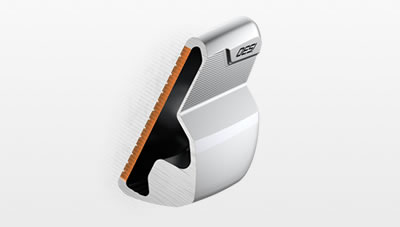

  • Cross-section illustration of i530 iron

    Hollow-Body Design

    The hollow body accentuates face bending that generates faster ball speeds and greater distance. Distance-optimized lofts help ensure max height with stopping power on greens.

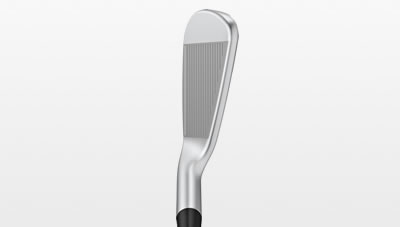

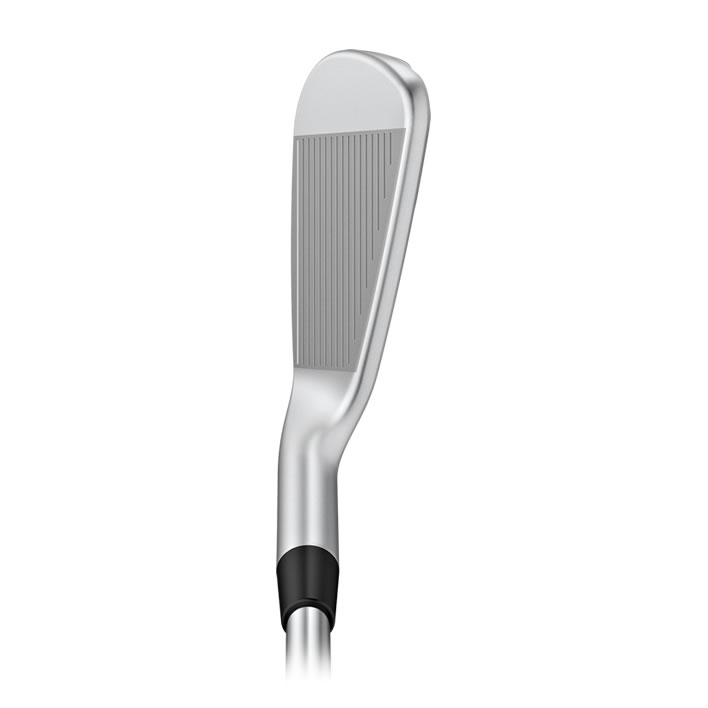

  • Address view of i530 iron

    Confidence Inspiring

    Blade enthusiasts will appreciate the compact head’s thin top line, narrow sole and shallow face height. The clean, premium look owes in part to a new machining technique that thins the back wall, saving weight to help with forgiveness and tighten dispersion.

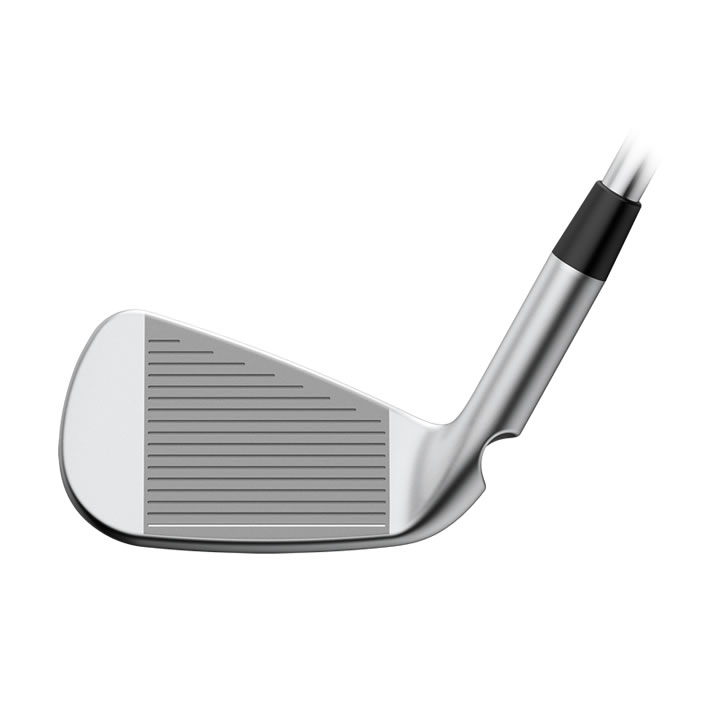

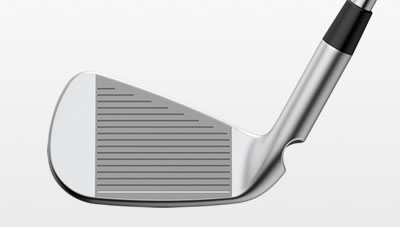

  • Face view of i530 iron

    More Grooves, Spin

    Precision-milled MicroMax grooves (tighter spacing, more grooves) ensure consistent launch and spin results and score-lowering performance from all conditions.

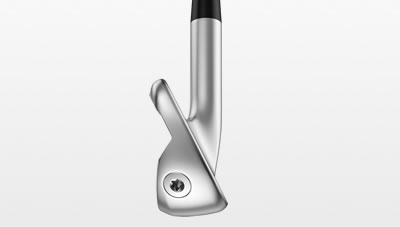

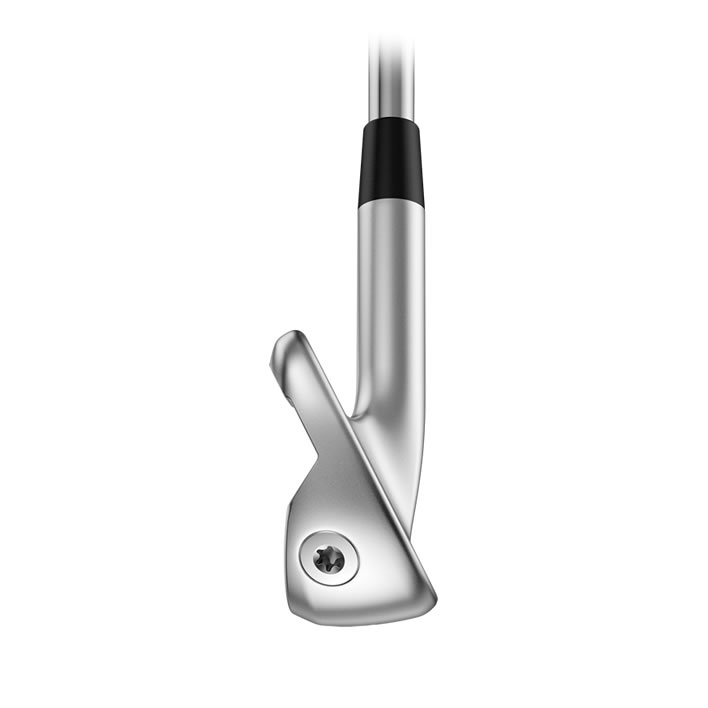

  • Toe view of i530 iron

    Power With Feel

    A lower CG is more aligned with where impact occurs, and a polymer precisely placed in the head improves feel and sound while maximizing face bending and ball speed. Tungsten toe screw and shaft tip weights for swingweight fine-tuning.

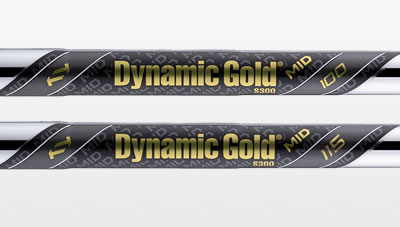

  • True Temper Dynamic Gold Mid 100 and 115 shafts

    DG Mid Shafts

    The stock shaft is True Temper’s new Dynamic Gold Mid 100 in multiple flexes, and the slightly heavier Dynamic Gold Mid 115 is a no-upcharge option. Their stiffer mid-section and softer tip promote a medium launch angle and spin rate with a stable feel.

i530 Reviews

Cavity view of i530 iron
i530
Reviews

i530


Cavity view of i530 iron
i530
Specifications

Club Length Loft Power Spec Loft Retro Spec Loft Lie Angle Offset Bounce Swing­weight
4-iron 38 7/8" 7/8 19.0°degrees 18.0°degrees 20.0°degrees 60.5°degrees 0.20"Ping.Clubs.Specs.Offset.Units 6.0°degrees D1
5-iron 38 1/4" 1/4 22.0°degrees 21.0°degrees 24.0°degrees 61.0°degrees 0.17"Ping.Clubs.Specs.Offset.Units 7.0°degrees D1
6-iron 37 5/8" 5/8 25.5°degrees 24.0°degrees 27.5°degrees 61.5°degrees 0.14"Ping.Clubs.Specs.Offset.Units 8.0°degrees D1
7-iron 37" 29.0°degrees 27.5°degrees 31.0°degrees 62.0°degrees 0.12"Ping.Clubs.Specs.Offset.Units 9.0°degrees D1
8-iron 36 1/2" 1/2 33.0°degrees 31.5°degrees 34.5°degrees 62.8°degrees 0.09"Ping.Clubs.Specs.Offset.Units 10.5°degrees D1
9-iron 36" 37.0°degrees 36.0°degrees 38.0°degrees 63.5°degrees 0.07"Ping.Clubs.Specs.Offset.Units 12.0°degrees D1.5
PW 35 1/2" 1/2 42.0°degrees 41.0°degrees 42.5°degrees 64.1°degrees 0.05"Ping.Clubs.Specs.Offset.Units 13.0°degrees D2
UW 35 1/2" 1/2 47.0°degrees 46.0°degrees 47.5°degrees 64.1°degrees 0.03"Ping.Clubs.Specs.Offset.Units 13.0°degrees D2

Notes

  • These are design specifications that may vary due to manufacturing tolerances.
  • Lie angle is based on Black Color Code at standard length.
  • Power Spec Loft is a fitting option for players looking to boost their iron distance or decrease spin to hit a desired trajectory window. This custom-designed loft configuration delivers a calculated power boost without sacrificing the integrity of the club’s design.
  • Retro Spec Loft is a fitting option if you’re less concerned with overall distance and more with precision and a higher trajectory for more stopping power. This loft configuration yields functional distance gaps for utilizing a 3-wedge setup or a more classic loft spec.
  • Club bounce angles will vary slightly if ordered with non-standard loft specs.
  • Standard swingweights for graphite-shafted clubs are 2 to 3 points lighter than shown, depending on shaft flex.
  • Achievable swingweights depend on shaft, length and grip combinations.
  • Available in left- and right-handed models.

Cavity view of i530 iron
i530
Shafts

PING offers a variety of shaft flexes in steel and graphite to meet your needs and preferences. Selecting the proper shaft flex for your swing will help you get the most distance and accuracy from every shot. Generally, players with faster swing speeds require stiffer shafts to keep the ball trajectory lower, while players with slower swing speeds will require more-flexible shafts to produce a higher ball trajectory.


The choice of steel or graphite shafts is usually based on preferences for weight and/or feel. Players seeking a lighter overall weight and/or a softer feel in their irons may prefer graphite shafts, while players who prefer a standard-weight club with a firmer feel may prefer steel shafts.


We recommend that you get fit for the shaft that allows you to play your best golf. Whether that’s a softer, lighter shaft with a higher launch or a heavier, stiffer shaft with a lower trajectory, a PING Certified Club Fitter can help you find the shaft that brings consistency to your game.

Shaft Flex Weight Launch Angle

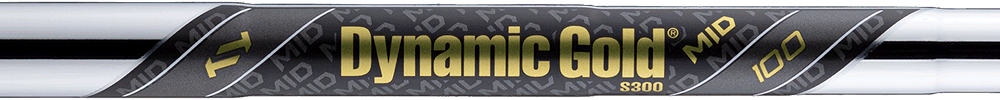

True Temper Dynamic Gold Mid 100
True Temper Dynamic Gold Mid 100 shaft		 R300 105.0gPing.Clubs.Specs.Weight.Units Mid
S300 105.0gPing.Clubs.Specs.Weight.Units Mid

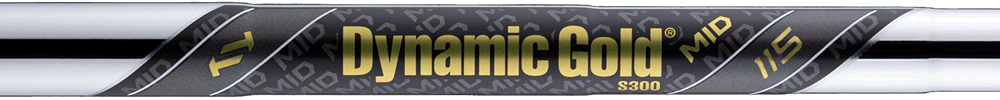

True Temper Dynamic Gold Mid 115
True Temper Dynamic Gold Mid 115 shaft		 S300 115.0gPing.Clubs.Specs.Weight.Units Mid
X100 116.0gPing.Clubs.Specs.Weight.Units Mid

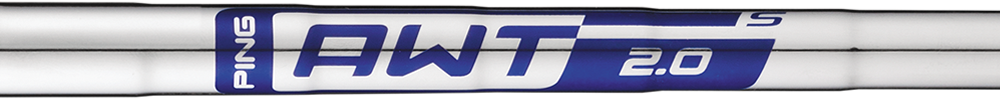

PING AWT 2.0
PING AWT 2.0 Shaft		 Regular 98.0gPing.Clubs.Specs.Weight.Units Mid High
Stiff 104.0gPing.Clubs.Specs.Weight.Units Mid
X-Stiff 119.0gPing.Clubs.Specs.Weight.Units Low Mid

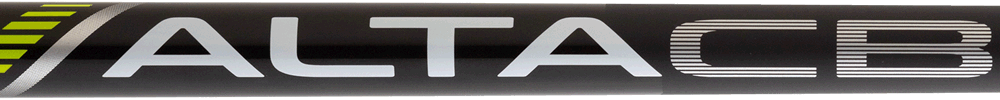

PING ALTA CB Black
PING Alta CB Black shaft		 Soft Regular 65.0gPing.Clubs.Specs.Weight.Units High
Regular 72.0gPing.Clubs.Specs.Weight.Units Mid High
Stiff 82.0gPing.Clubs.Specs.Weight.Units Mid

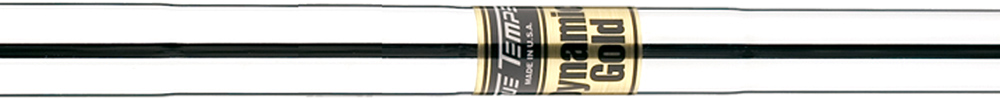

True Temper Dynamic Gold
True Temper Dynamic Gold Shaft		 S300 124.0gPing.Clubs.Specs.Weight.Units Low Mid
X100 124.0gPing.Clubs.Specs.Weight.Units Low

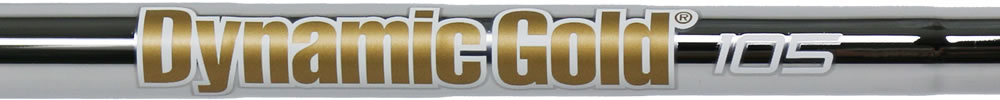

True Temper Dynamic Gold 105
True Temper DG 105 shaft		 R300 94.0gPing.Clubs.Specs.Weight.Units Mid
S300 96.0gPing.Clubs.Specs.Weight.Units Mid

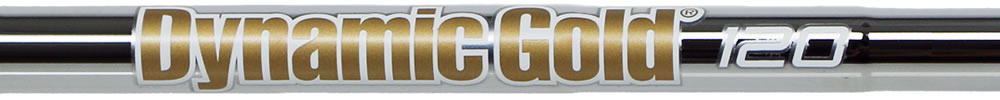

True Temper Dynamic Gold 120
True Temper DG 120 shaft		 S300 112.0gPing.Clubs.Specs.Weight.Units Low
X100 114.0gPing.Clubs.Specs.Weight.Units Low

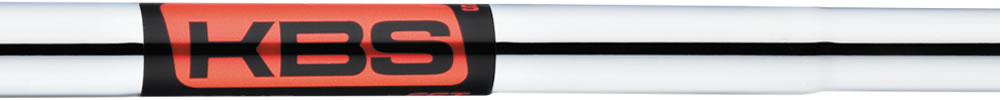

KBS Tour
KBS Tour Shaft		 Regular 104.0gPing.Clubs.Specs.Weight.Units Mid
Stiff 114.0gPing.Clubs.Specs.Weight.Units Mid
X-Stiff 124.0gPing.Clubs.Specs.Weight.Units Low Mid

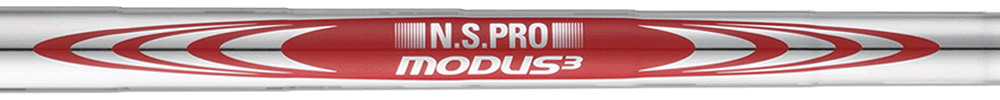

Nippon N.S. Pro Modus 3 Tour 105
Nippon NS Pro Modus3 Tour 105		 Regular 103.0gPing.Clubs.Specs.Weight.Units Mid High
Stiff 106.0gPing.Clubs.Specs.Weight.Units Mid High
X-Stiff 112.0gPing.Clubs.Specs.Weight.Units Mid High

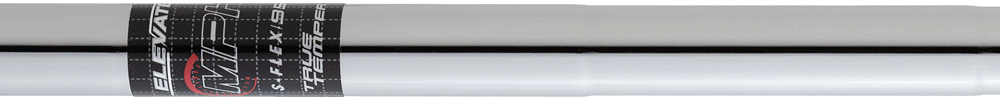

True Temper Elevate MPH 95
True Temper Elevate MPH 95 shaft		 Regular 93.0gPing.Clubs.Specs.Weight.Units High
Stiff 94.0gPing.Clubs.Specs.Weight.Units High

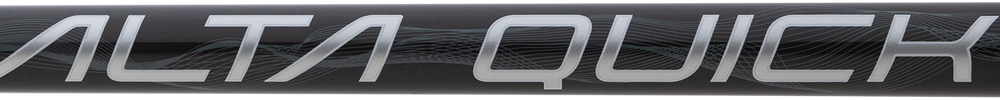

PING ALTA Quick
PING Alta Quick shaft		 35 38.0gPing.Clubs.Specs.Weight.Units High
45 41.0gPing.Clubs.Specs.Weight.Units High

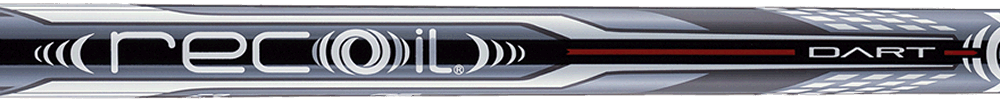

UST Recoil Dart
UST Recoil Dart shaft		 65A (F2) 61.0gPing.Clubs.Specs.Weight.Units Mid
75R (F3) 72.0gPing.Clubs.Specs.Weight.Units Mid
75S (F4) 78.0gPing.Clubs.Specs.Weight.Units Mid

Notes

  • Shaft weights listed are based on the trimmed length of a 7-iron and may not match the specs on the shaft manufacturer’s websites.

Cavity view of i530 iron
i530
Grips

PING offers a variety of grip sizes and styles to fit different hand sizes and texture preferences. Since grip size influences your wrist action, and therefore the direction of your shots, it is commonly used by fitters to affect ball flight.


PING color-coded grips are available in six different diameters, and can be further customized with grip tape according to your needs. Once the neutral grip color code has been determined based on hand measurements, golfers may consider smaller diameter grips to help control fades and slices, or larger diameter grips to help control draws and hooks.

Grip Grip Size Description
Golf Pride 360 Tour Velvet
Golf Pride 360 Tour Velvet grip
  • plus+1/16"Ping.Clubs.Grips.ColorCode.Size.Units
  • plus+1/32"Ping.Clubs.Grips.ColorCode.Size.Units
  • StdPing.Clubs.Grips.ColorCode.Size.Units
  • minus-1/64"Ping.Clubs.Grips.ColorCode.Size.Units
  • minus-1/32"Ping.Clubs.Grips.ColorCode.Size.Units
  • minus-1/16"Ping.Clubs.Grips.ColorCode.Size.Units

The Golf Pride Tour Velvet features a state-of-the-art rubber-blend compound with a non-slip surface pattern for maximum playability and confidence. The scientifically designed plus-sign texture pulls moisture away from surface to allow for consistent traction.
Golf Pride 360 Tour Velvet Cord
Golf Pride 360 Tour Velvet Cord grip
  • plus+1/32"Ping.Clubs.Grips.ColorCode.Size.Units
  • StdPing.Clubs.Grips.ColorCode.Size.Units

The Golf Pride Tour Velvet Cord features a state-of-the-art rubber-blend compound with a non-slip surface pattern and embedded cotton twill fibers for maximum playability and confidence in all weather conditions. The scientifically designed plus-sign texture pulls moisture away from surface to allow for consistent traction.
Lamkin UTx Lite
Lamkin UTx grip
  • plus+1/32"Ping.Clubs.Grips.ColorCode.Size.Units
  • StdPing.Clubs.Grips.ColorCode.Size.Units
  • minus-1/64"Ping.Clubs.Grips.ColorCode.Size.Units

UTx Lite allows you to experience the benefits of the UTx pattern while meeting a tight, lightweight tolerance for overall swingweight. UTx provides a secure and comfortable connection to the club with maximum feel and feedback in all weather conditions.
